There is not a breath of wind outside, while inside the air conditioning is running at full blast. Cooling and heating account for some 32 percent of global energy consumption, and some 30 percent of CO2 emissions. Climate change is driving an increase in cooling requirements – and a related health risk: if air conditioning systems are not properly maintained, mold develops inside the equipment and in air ducts. This affects people’s immune systems just as drafts can. Europe is seeing the spread of a healthier, more efficient form of air conditioning: active systems that are built into ceilings, walls, and floors. Like the radiators in a central heating system, they have (cold) water flowing through them. Such climate control components quickly reach their operating limits, however: if cooled surfaces reach the dew point, condensation forms on them – just like it does on a glass of cold lemonade.
Comfortable temperatures with minimal energy consumption
Researchers at Fraunhofer IBP have developed innovative technology that prevents condensation: a special heat-conducting polymer film. When applied to multifunctional ceiling panels, it has the same effect as insulating glass and allows the panels to function well below the dew point without condensation forming. “Our system is unique in the world,” says Alexander Buff, a scientist at Fraunhofer IBP in Rosenheim. The concept was funded by the Fraunhofer Venture Group (see link below), and a patent is pending. Now a team of six, the scientists have been awarded level I EXIST start-up research funding from the German Federal Ministry of Economy and Energy. The team’s Clear Sky Cooling project is currently being spun off from Fraunhofer under the name Interpanel GmbH, with Alexander Buff as its CEO, and the multifunctional cooling and heating system will be available from mid-2017.
Multifunctional, upgradable modules
What makes the technology special is that it avoids the problem of the dew point, and it is multifunctional. Around two square meters in size, the modules can be combined flexibly. As efficient LED lighting panels, they save energy. With its acoustic activation, the system simplifies interface planning. High-density modularity reduces the system’s overall size and saves on installation time. Sheets of film are individually printable and easy to replace. The long-lasting modules can be taken down and re-installed elsewhere.

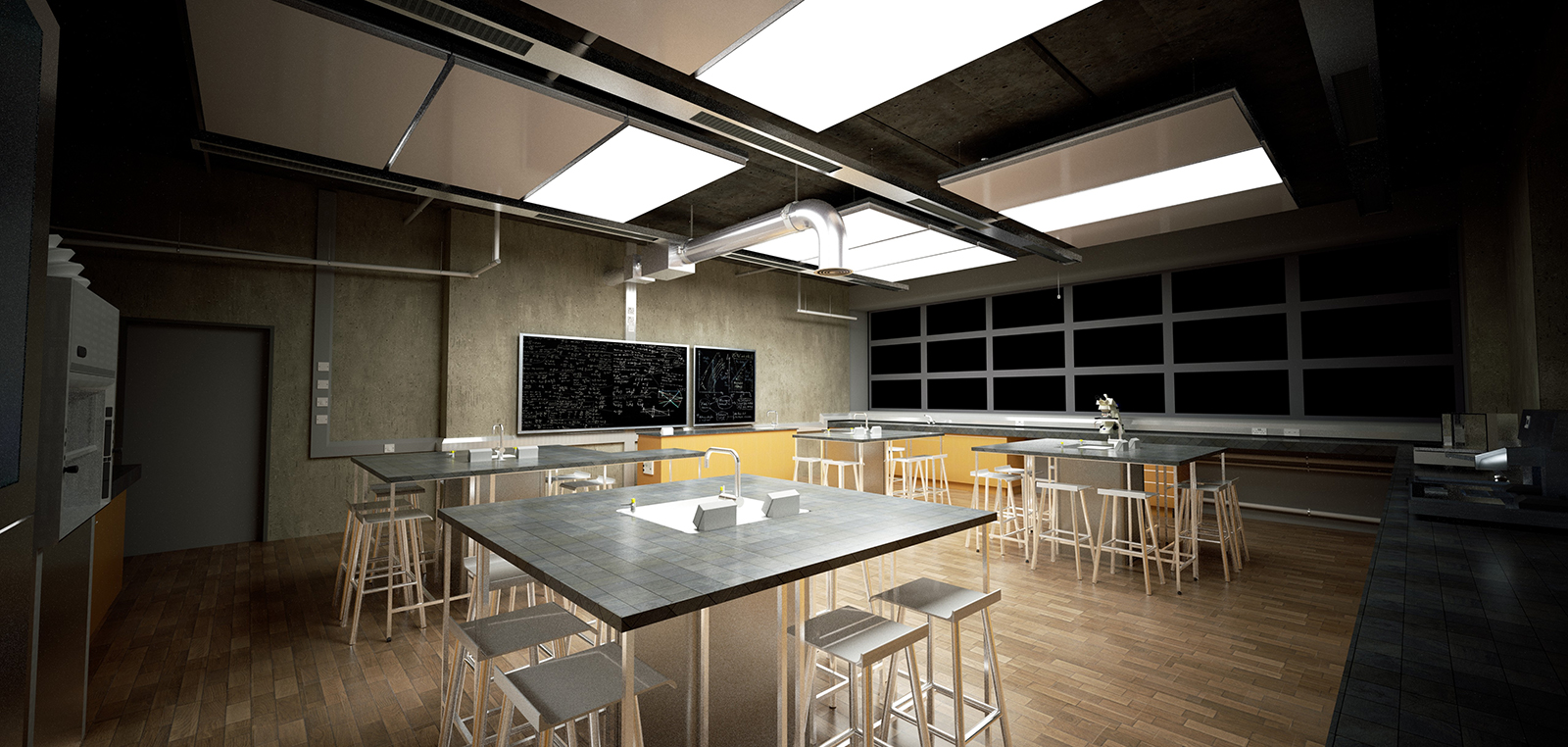

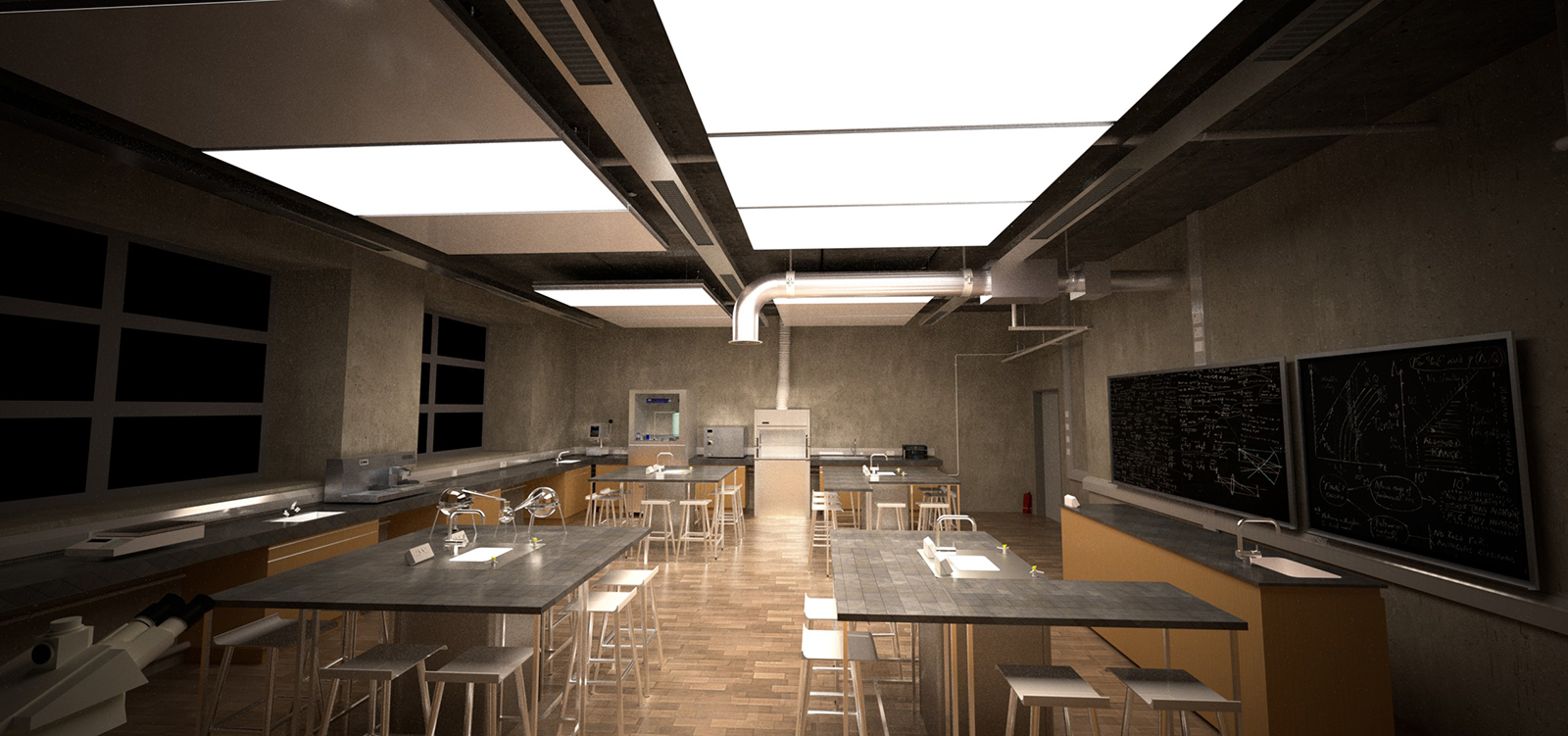

Ceilings fitted with the system achieve much the same refreshing effect as a starry sky on a warm summer night: once the sun goes down, the air feels pleasantly cool because the clear, cold night sky draws away the heat, causing an instant drop in perceived temperature. The ceiling panels work according to the same physical principle: their cooled surfaces absorb the heat given off by people in a process that is direct, noiseless, and free of drafts. Ceiling panels can be cooled at the push of a button or by means of a motion sensor, and in around three minutes they generate a pleasant ambient climate in the room beneath them – as beneath a cool night sky. Because it circumvents the problem of the dew point, the system can also be used in open spaces such as industrial workplaces or open-plan offices. Instead of causing cold air to swirl around in a space, the panels absorb the naturally radiated heat only where comfort is needed. Such zonal usability makes Clear Sky Cooling particularly energy-efficient. It is especially suited for use in health-related environments such as hospitals, physiotherapy centers, and fitness studios, as well as in open-plan offices, conference centers, and manufacturing facilities. The system works independently of surrounding drafts and humidity, and so its operation is nearly safe and maintenance-free.
At the BAU trade fair from January 16-21, 2017 in Munich, the future Fraunhofer spin-off Interpanel GmbH will exhibit its innovative technology at the Fraunhofer Building Innovation Alliance’s special show, “Fraunhofer CityLaboratory – creating living spaces” (Hall C2, Booth 538).
